Bearings are essential for reducing friction and supporting moving parts in machinery. While different bearing types are designed for various load conditions, selecting the right one is critical for ensuring equipment performance and longevity.
A thrust bearing is specifically designed to support axial (thrust) loads, making it an ideal choice for applications where force is applied parallel to the shaft. In comparison, pillow block bearings are mounted bearing units that primarily support rotating shafts under radial loads while offering easy installation and maintenance.
This guide explains how thrust bearings work, their advantages, common applications, and how they differ from pillow block bearings.

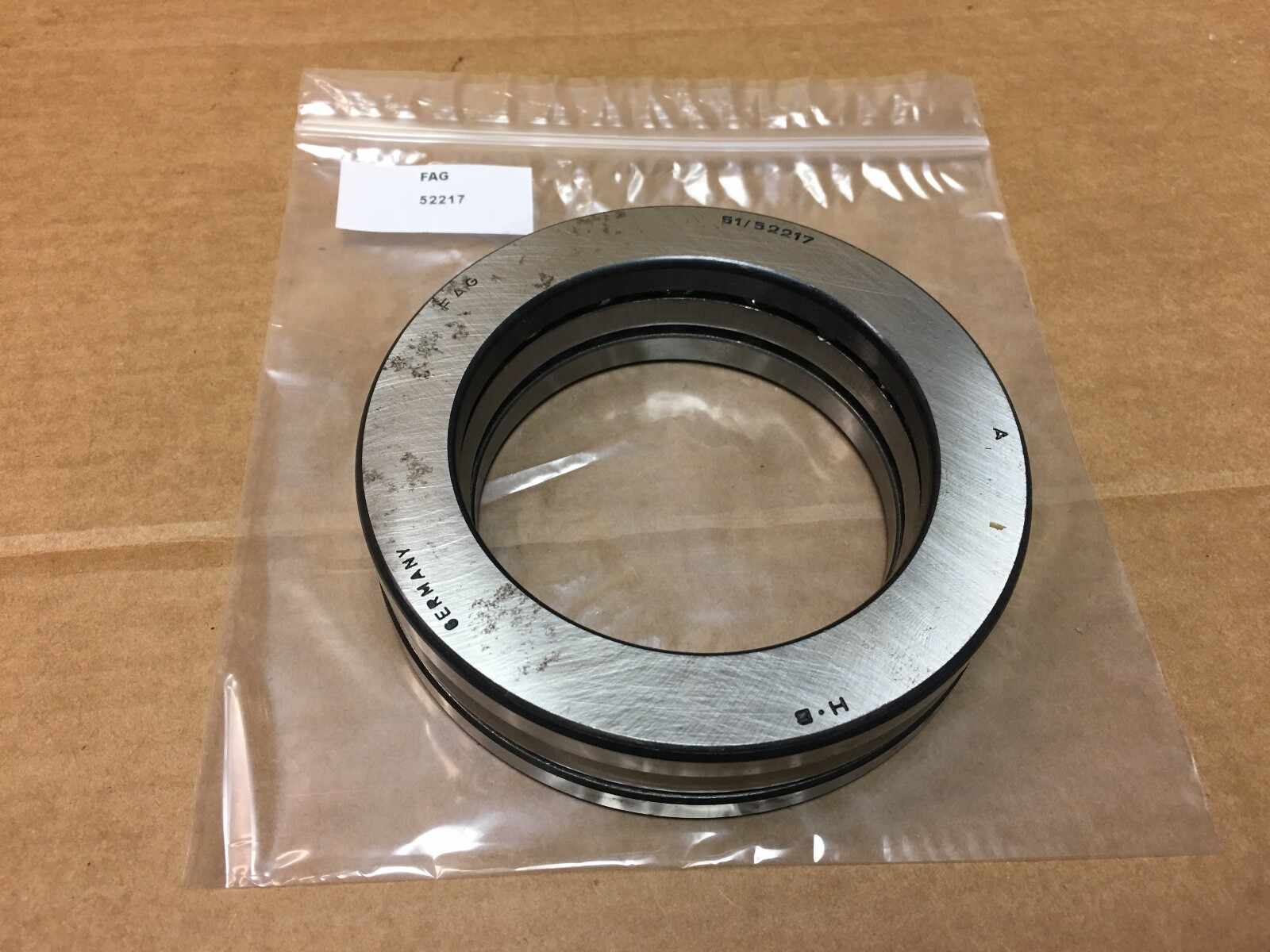

What Is a Thrust Bearing?
A thrust bearing is a type of rotary bearing designed to support axial loads rather than radial loads. It helps maintain shaft alignment and allows smooth rotation while handling forces that act along the shaft's axis.
Unlike standard ball bearings, thrust bearings are not intended to support significant radial loads unless specifically designed for combined loading applications.
How Thrust Bearings Work
A thrust bearing consists of rolling elements positioned between two bearing washers or raceways. As axial force is applied, the rolling elements reduce friction and distribute the load evenly, allowing the shaft to rotate smoothly.
Depending on the application, thrust bearings may use:
Ball elements
Cylindrical rollers
Tapered rollers
Needle rollers
Spherical rollers
Each design is intended to handle different load capacities and operating conditions.
Benefits of Thrust Bearings
Excellent Axial Load Capacity
Thrust bearings are engineered specifically to handle heavy axial forces with high efficiency.
Smooth Rotation
Their rolling elements minimize friction, improving machine performance and reducing wear.
Improved Equipment Reliability
By supporting axial loads effectively, thrust bearings help prevent premature component failure.
Long Service Life
When properly lubricated and maintained, thrust bearings provide dependable performance over extended operating periods.
Wide Range of Designs
Available in multiple configurations, thrust bearings can meet the needs of light-duty and heavy-duty industrial applications.
Common Types of Thrust Bearings
Ball Thrust Bearings
Ideal for light to moderate axial loads and high-speed applications.
Common uses include:
Electric motors
Machine tools
Turntables
Cylindrical Roller Thrust Bearings
Designed for heavy axial loads with high rigidity.
Often used in:
Industrial presses
Gearboxes
Heavy machinery
Tapered Roller Thrust Bearings
Capable of handling high axial loads while maintaining excellent durability.
Typical applications include:
Construction equipment
Automotive systems
Mining machinery
Needle Roller Thrust Bearings
Compact and lightweight, these bearings are ideal where space is limited.
Spherical Roller Thrust Bearings
Suitable for heavy loads and applications where shaft misalignment may occur.
Common Applications of Thrust Bearings
Thrust bearings are widely used in:
Automotive transmissions
Marine propulsion systems
Industrial gearboxes
Cranes
Pumps
Compressors
Vertical motors
Machine tools
Wind turbines
Agricultural equipment
Their ability to support axial forces makes them essential in many rotating systems.
What Are Pillow Block Bearings?
Pillow block bearings are mounted bearing assemblies that consist of a bearing housed inside a durable mounting block. These units simplify shaft support and installation by providing a pre-assembled bearing and housing.
They are commonly used where shafts require stable radial support and easy maintenance.
Advantages of Pillow Block Bearings
Easy Installation
Pillow block units can be mounted quickly without complex alignment procedures.
Simplified Maintenance
Many designs allow easy bearing replacement and lubrication.
Reliable Shaft Support
They provide stable shaft positioning in a wide variety of industrial applications.
Versatile Mounting
Available in numerous housing materials and configurations for different environments.
Cost-Effective Solution
Pillow block bearings reduce installation time and maintenance costs.
Common Applications of Pillow Block Bearings
Pillow block bearings are commonly found in:
Conveyor systems
Agricultural equipment
Food processing machinery
Packaging equipment
HVAC systems
Textile machinery
Material handling equipment
Industrial fans
Manufacturing equipment
Woodworking machinery
Thrust Bearings vs. Pillow Block Bearings
FeatureThrust BearingPillow Block BearingsPrimary loadAxialRadialBearing designStandalone bearingMounted bearing unitInstallationInside machineryExternal housing mountMaintenanceApplication-specificGenerally easyHeavy axial loadsExcellentLimitedShaft supportAxial positioningRadial shaft supportCommon industriesAutomotive, marine, industrialManufacturing, conveyors, agriculture
While both bearing types improve machine performance, they are designed for different load conditions and installation methods.
How to Choose the Right Bearing
When selecting thrust bearing or pillow block bearings, consider:
Load Direction
Determine whether your equipment experiences primarily axial loads, radial loads, or a combination of both.
Operating Speed
Choose bearings rated for the required rotational speed.
Environmental Conditions
Dust, moisture, chemicals, and extreme temperatures may require sealed or corrosion-resistant bearings.
Lubrication Requirements
Proper lubrication helps reduce friction and extend bearing life.
Mounting Design
Ensure the bearing matches your equipment's shaft size and housing configuration.
Maintenance Tips for Longer Bearing Life
To maximize bearing performance:
Follow proper installation procedures.
Use the recommended lubricant.
Inspect bearings regularly for wear.
Monitor operating temperature and vibration.
Replace damaged seals promptly.
Avoid overloading machinery.
Keep bearings free from contamination.
Routine maintenance helps reduce unexpected failures and costly downtime.
Why Work with a Trusted Bearing Supplier?
Choosing a reliable supplier ensures you receive genuine, high-quality products backed by technical expertise. Experienced suppliers can help you:
Select the correct bearing type
Verify specifications
Cross-reference part numbers
Recommend suitable replacements
Provide maintenance guidance
Improve equipment reliability
Partnering with a knowledgeable supplier simplifies the purchasing process and helps keep machinery operating efficiently.
Conclusion
A thrust bearing is the ideal solution for applications that require reliable support for axial loads, offering smooth operation, durability, and long service life. Meanwhile, pillow block bearings provide convenient mounted shaft support for radial load applications, making installation and maintenance easier.
Understanding the differences between these bearing types allows engineers, maintenance professionals, and equipment owners to select the right solution for their machinery, improving performance while minimizing downtime and maintenance costs.
Frequently Asked Questions
1. What is a thrust bearing used for?
A thrust bearing is designed to support axial loads in applications such as gearboxes, pumps, marine systems, automotive transmissions, and industrial machinery.
2. Can a thrust bearing support radial loads?
Most thrust bearings are intended primarily for axial loads. Some specialized designs can accommodate limited radial loads, but they are not typically used as radial bearings.
3. What are pillow block bearings used for?
Pillow block bearings are mounted bearing units used to support rotating shafts in conveyors, agricultural equipment, manufacturing machinery, HVAC systems, and other industrial applications.
4. What are the advantages of pillow block bearings?
They offer easy installation, simplified maintenance, reliable shaft support, and are available in a wide range of sizes and housing materials.
5. How do I know which bearing type I need?
The correct bearing depends on your equipment's load direction, operating speed, shaft size, environmental conditions, and manufacturer specifications.
6. How can I extend the service life of industrial bearings?
Proper installation, regular lubrication, routine inspections, contamination control, and operating within recommended load limits are essential for maximizing bearing performance and longevity.
