Angular contact bearings are essential components in modern industrial machinery, delivering exceptional performance where both radial and axial loads are present. From CNC machines and electric motors to automotive systems and industrial pumps, angular contact bearings are designed to provide high precision, durability, and smooth operation under demanding conditions. Choosing the right bearing type helps reduce downtime, improve efficiency, and extend equipment life.

In many industrial applications, flange bearings are also widely used to support rotating shafts and simplify installation. While angular contact bearings are known for handling combined loads at high speeds, flange bearings provide stable shaft support in mounted applications. Understanding the differences between these bearing types helps businesses select the best solution for their equipment.

This guide explores how angular contact bearings work, their advantages, applications, maintenance tips, and how they compare with flange bearings.

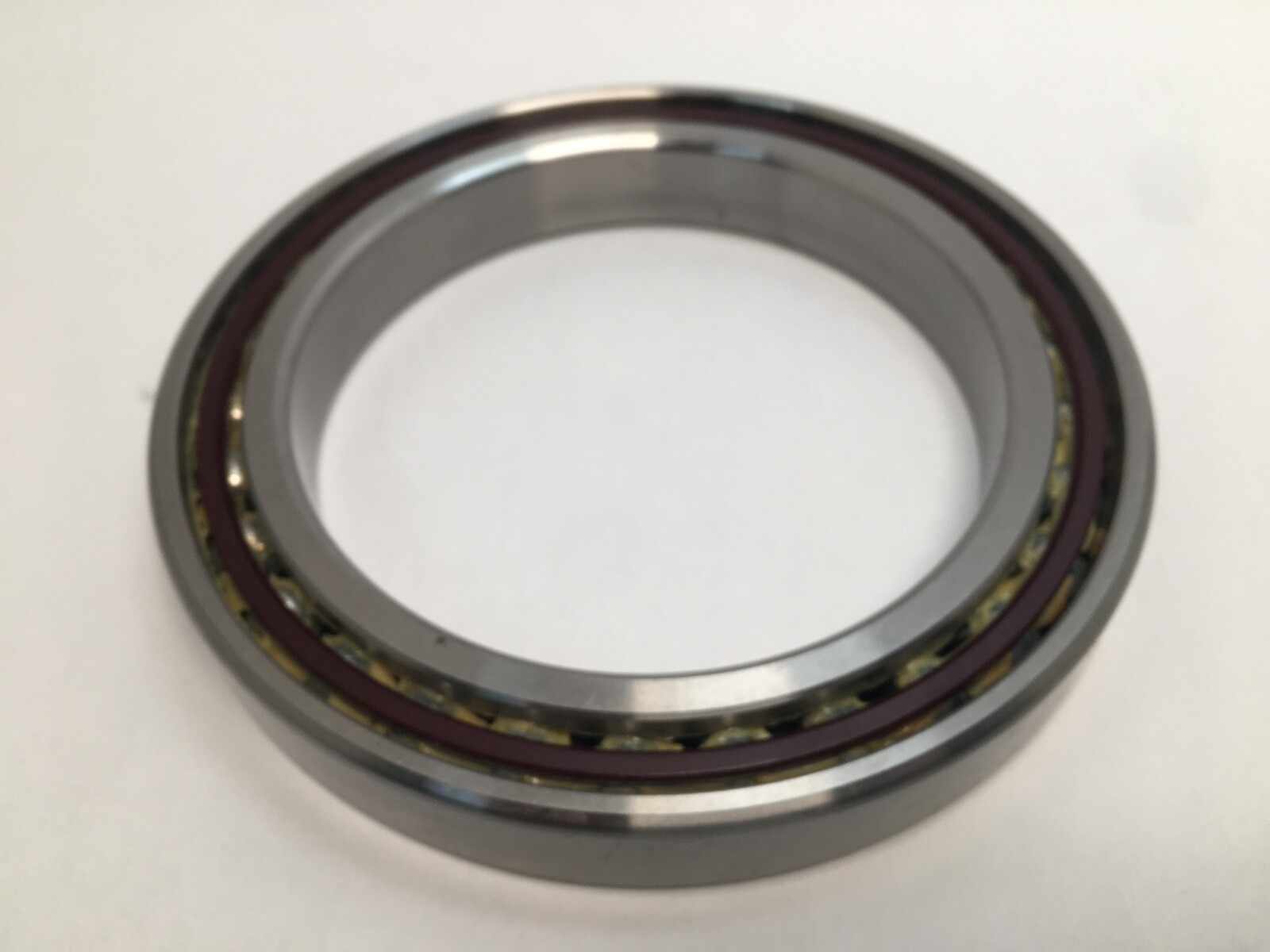

What Are Angular Contact Bearings?

Angular contact bearings are rolling-element bearings specifically designed to accommodate both radial and axial loads simultaneously. Unlike standard deep groove ball bearings, the contact angle between the balls and raceways allows these bearings to handle higher thrust loads in one direction.

The contact angle determines how much axial load the bearing can support. Common contact angles include:

1. 15° – High-speed applications

2. 25° – Balanced radial and axial load capacity

3. 40° – Heavy axial load applications

The larger the contact angle, the greater the axial load capacity.

How Angular Contact Bearings Work

Angular contact bearings distribute forces through an angled contact point between the rolling elements and raceways. This design improves load distribution and minimizes friction while maintaining high rotational accuracy.

When installed correctly, these bearings:

1. Support radial loads efficiently

2. Handle significant axial loads

3. Operate at high rotational speeds

4. Reduce vibration

5. Maintain shaft alignment

Many machines use paired angular contact bearings to support axial loads in both directions.

Key Features of Angular Contact Bearings

These bearings offer several advantages that make them suitable for precision machinery.

High Load Capacity

Angular contact bearings are designed to withstand both radial and axial loads simultaneously, making them ideal for demanding industrial applications.

Excellent Speed Performance

Their optimized internal geometry enables high-speed operation while maintaining accuracy and minimizing heat generation.

Precision Operation

Manufactured with tight tolerances, these bearings provide smooth rotation and accurate shaft positioning.

Reduced Friction

Advanced raceway design minimizes rolling resistance, improving overall equipment efficiency.

Long Service Life

With proper lubrication and maintenance, angular contact bearings deliver reliable long-term performance.

Types of Angular Contact Bearings

Several configurations are available depending on equipment requirements.

Single Row Angular Contact Bearings

Single-row bearings support axial loads in one direction and radial loads simultaneously. They are commonly installed in pairs for bidirectional load support.

Applications include:

1. Pumps

2. Compressors

3. Machine tools

4. Electric motors

Double Row Angular Contact Bearings

These bearings function like two single-row bearings mounted back-to-back.

Advantages include:

1. Higher load capacity

2. Compact design

3. Improved rigidity

4. Better shaft support

They are commonly used in gearboxes and industrial machinery.

Four-Point Contact Bearings

These bearings support axial loads in both directions while occupying minimal space.

Typical applications include:

1. Robotics

2. Precision positioning equipment

3. Rotary tables

Benefits of Angular Contact Bearings

Industries rely on angular contact bearings because they provide numerous operational benefits.

Improved Machine Accuracy

High precision manufacturing minimizes shaft movement and improves machining accuracy.

Better Load Distribution

Combined load handling reduces stress on surrounding components.

Increased Productivity

Reliable operation minimizes downtime and maintenance interruptions.

Energy Efficiency

Lower friction reduces energy consumption during continuous operation.

High-Speed Capability

Suitable for applications operating at thousands of RPM without sacrificing stability.

Common Industrial Applications

Angular contact bearings are used across numerous industries.

CNC Machines

Machine tool spindles require high precision and rigidity to produce accurate components.

Electric Motors

High-speed motors rely on angular contact bearings for smooth rotation and reduced vibration.

Industrial Pumps

Pump shafts experience both radial and axial forces that these bearings effectively manage.

Automotive Industry

Applications include:

1. Transmissions

2. Differential assemblies

3. Wheel hubs

4. Performance engines

Aerospace Equipment

Aircraft systems require lightweight, high-precision bearings capable of operating under demanding conditions.

Medical Equipment

MRI machines, surgical tools, and laboratory equipment depend on precision bearings for reliable operation.

Understanding Flange Bearings

While angular contact bearings are designed for combined load handling, flange bearings serve a different purpose.

Flange bearings are mounted bearing units featuring a flange that bolts directly onto machinery. They support rotating shafts while simplifying installation and alignment.

They typically include:

1. Bearing insert

2. Housing

3. Mounting flange

4. Shaft locking mechanism

Flange bearings are ideal for applications where shaft support and easy installation are priorities.

Angular Contact Bearings vs Flange Bearings

Although both bearing types play important roles, they serve different applications.

FeatureAngular Contact BearingsFlange BearingsLoad TypeCombined radial and axialPrimarily radialInstallationPress fit into housingBolt-on mountingPrecisionVery highModerateSpeed CapabilityHighModerateCommon ApplicationsSpindles, pumps, motorsConveyors, agricultural equipmentShaft AlignmentPrecision alignmentEasy installation

Understanding these differences helps engineers select the appropriate bearing for each application.

Selecting the Right Angular Contact Bearings

Several factors should be considered before choosing a bearing.

Load Requirements

Determine:

1. Radial load

2. Axial load

3. Combined loading conditions

Proper load calculations improve bearing life.

Operating Speed

Different bearing designs have varying speed limits. High-speed applications require precision-grade bearings.

Contact Angle

Choose based on application needs.

1. Small angle for speed

2. Larger angle for axial load capacity

Lubrication

Select appropriate lubrication depending on:

1. Speed

2. Temperature

3. Environment

4. Maintenance schedule

Precision Class

Industries such as aerospace and CNC machining require higher precision classes than general industrial equipment.

Installation Best Practices

Proper installation significantly affects bearing performance.

Recommended practices include:

1. Clean all components before installation.

2. Use proper installation tools.

3. Avoid hammering bearings directly.

4. Ensure correct shaft alignment.

5. Follow manufacturer torque specifications.

6. Verify preload settings where applicable.

Improper installation can dramatically reduce bearing life.

Maintenance Tips

Routine maintenance helps maximize performance.

Regular Inspection

Monitor for:

1. Excessive vibration

2. Noise

3. Temperature increases

4. Lubrication leaks

Proper Lubrication

Use the recommended grease or oil and avoid over-lubrication.

Prevent Contamination

Keep bearings protected from:

1. Dust

2. Dirt

3. Moisture

4. Chemicals

5. Metal particles

Monitor Operating Conditions

Unexpected changes in load or temperature may indicate developing bearing problems.

Common Causes of Bearing Failure

Even premium bearings can fail if operating conditions are poor.

Common causes include:

1. Improper lubrication

2. Misalignment

3. Contamination

4. Excessive preload

5. Overloading

6. Incorrect installation

7. Corrosion

8. Electrical current damage

Identifying these issues early reduces maintenance costs.

Industries That Depend on Angular Contact Bearings

Many sectors rely heavily on these bearings.

Examples include:

1. Manufacturing

2. Mining

3. Food processing

4. Packaging

5. Renewable energy

6. Oil and gas

7. Automotive manufacturing

8. Robotics

9. Aerospace

10. Medical equipment

Each industry benefits from improved reliability and precision.

Future Trends in Bearing Technology

Modern bearing technology continues to evolve.

Current innovations include:

1. Hybrid ceramic bearings

2. Advanced lubrication systems

3. Low-friction coatings

4. Smart condition monitoring

5. Improved sealing technology

6. Higher precision manufacturing

These advancements increase equipment reliability while reducing maintenance costs.

Conclusion

Angular contact bearings are indispensable for machinery that requires precision, high-speed performance, and the ability to handle combined radial and axial loads. Their advanced design makes them the preferred choice for CNC machines, electric motors, pumps, automotive systems, and countless industrial applications. Selecting the correct bearing, ensuring proper installation, and following regular maintenance practices can significantly improve equipment efficiency and service life.

While flange bearings are better suited for mounted shaft support and simplified installation, angular contact bearings excel in precision-driven and high-performance environments. Understanding the strengths of both bearing types enables businesses to make informed decisions that reduce downtime, enhance productivity, and maximize the lifespan of critical machinery.

Frequently Asked Questions (FAQs)

1. What are angular contact bearings used for?

Angular contact bearings are used in CNC machines, electric motors, pumps, automotive transmissions, robotics, aerospace equipment, and other applications requiring support for both radial and axial loads.

2. What makes angular contact bearings different from deep groove ball bearings?

Angular contact bearings have an angled contact between the balls and raceways, allowing them to handle significantly higher axial loads while maintaining high-speed performance.

3. Can angular contact bearings handle loads in both directions?

Single-row angular contact bearings handle axial loads in one direction. When mounted in pairs or as double-row bearings, they can support axial loads in both directions.

4. What are flange bearings used for?

Flange bearings are primarily used to support rotating shafts in conveyors, agricultural equipment, packaging machinery, and industrial systems where easy mounting and alignment are important.

5. How often should angular contact bearings be lubricated?

Lubrication intervals depend on operating speed, load, temperature, and environmental conditions. Always follow the equipment or bearing manufacturer's maintenance recommendations.

6. What causes angular contact bearing failure?

Common causes include improper lubrication, contamination, overload, misalignment, incorrect installation, excessive preload, and corrosion.

7. How do I choose the right angular contact bearing?

Consider factors such as load capacity, operating speed, contact angle, precision class, lubrication requirements, and application environment.

8. Are angular contact bearings suitable for high-speed machinery?

Yes. They are specifically designed for high-speed applications requiring precision, rigidity, and reliable performance under combined loading conditions.
